Aqara Panel Hub / MagicPad S1 Plus

Name: Aqara Panel Hub / MagicPad S1 Plus
SKU: 8881
Availability: InStock
Rating: 4.00 (1 reviews)

4.00 out of 5

(1 customer review)

$539.00

Revolutionizes full screen smart home control, Its distinctive features include customizable themes, touchscreen control for devices and scenes, and support for quick theme changes.

Type

Clear

SKU: N/A Categories: Appliances, Aqara, Controllers, Wall Switches, Wireless Switches

Description

Customizable touchscreen for whole-home control

Smart Home Command Centre. On Your Wall.

One Screen To Rule Them All

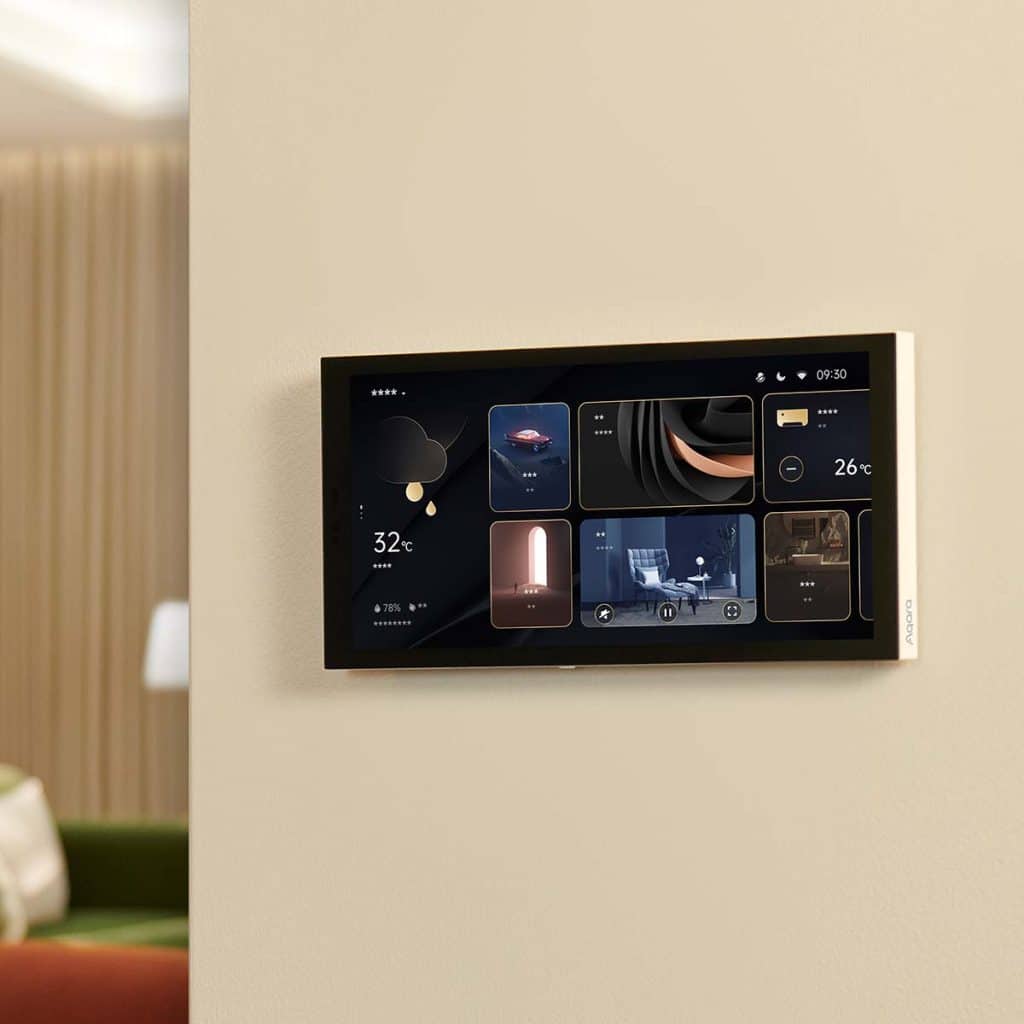

The Aqara MagicPad S1 Plus, also known as the Aqara Panel Hub S1 Plus, is a full screen, 6.9 inch customizable touchscreen where all your Aqara Smart Products can be controlled from. Add your smart lights, curtains, and switches to the screen, and activate them with a quick tap.

Want to go further? The MagicPad S1 Plus is also capable of video playback from the range of Aqara cameras, including the Camera G100 and the Video Doorbell G410. For the latter, any doorbell press will instantly and automatically stream the doorbell’s footage – in real-time – to the screen, even allowing you to press an icon to speak with the visitor with its inbuilt speaker and microphone.

An Actual, Wired Switch

A Touchscreen and a Smart Switch, Combined

The Aqara Panel Hub S1 Plus is both a touchscreen control and a smart, wired switch. When wired up to a light, it can control the light remotely and as part of your smart home controls – including scenes and automations.

You’ll be able to add the wired switches as tiles to the touchscreen as part of the customizable functionality.

As a wired switch, it has a standard Singapore 86x86mm rear enclosure for the relays, meaning it’ll fit into most existing light switch points physically. Do note, though, that the screen extends leftwards, which means you’ll need clearance on that side.

Requires a neutral wire.
MagicPad Black has 3-gangs; Panel Hub White has 2-gangs.

Your Choice of Colour

MagicPad Black or Panel Hub White

This item exists in two versions – the Aqara MagicPad S1 Plus (Black, 3-gang), or the Aqara Panel Hub S1 Plus (White, 2-gang). Besides the rear enclosure size, number of gangs, and rim colour, there are no other differences.

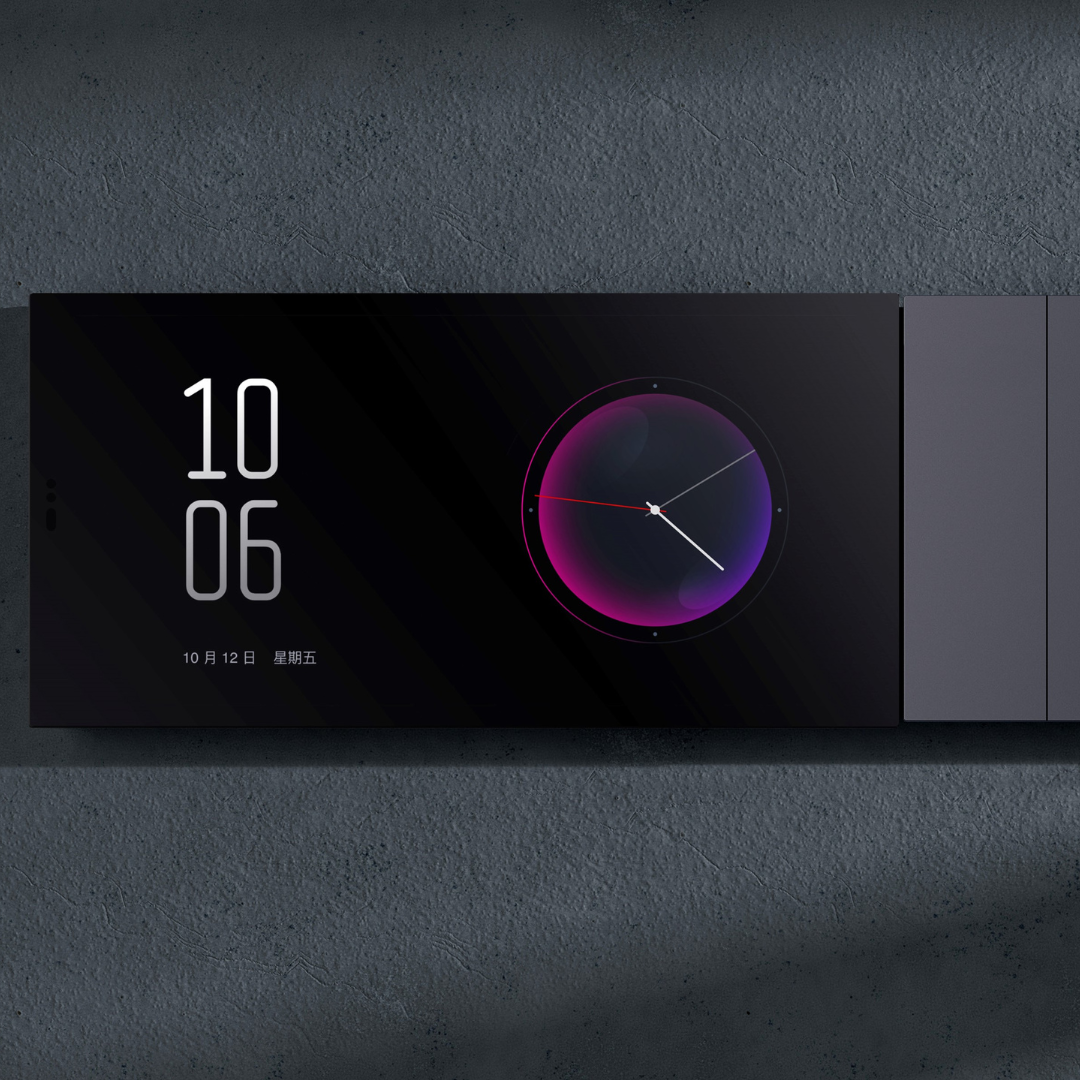

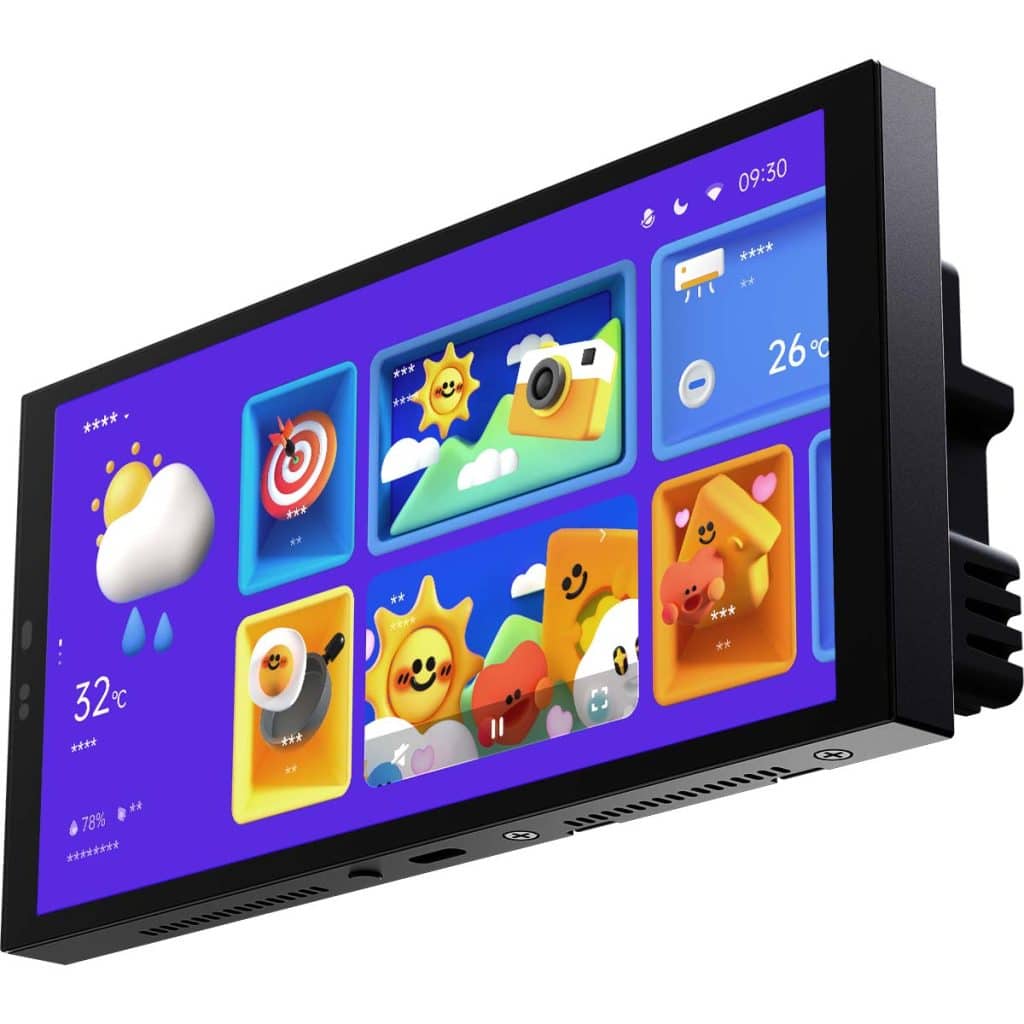

Aqara MagicPad S1 Plus

As the original release, this version has a square rear enclosure typical of Singapore smart switches. This square enclosure is larger to allow for the inclusion of 3-gang smart controls.

The Aqara MagicPad S1 Plus has a black bezel and black rims.

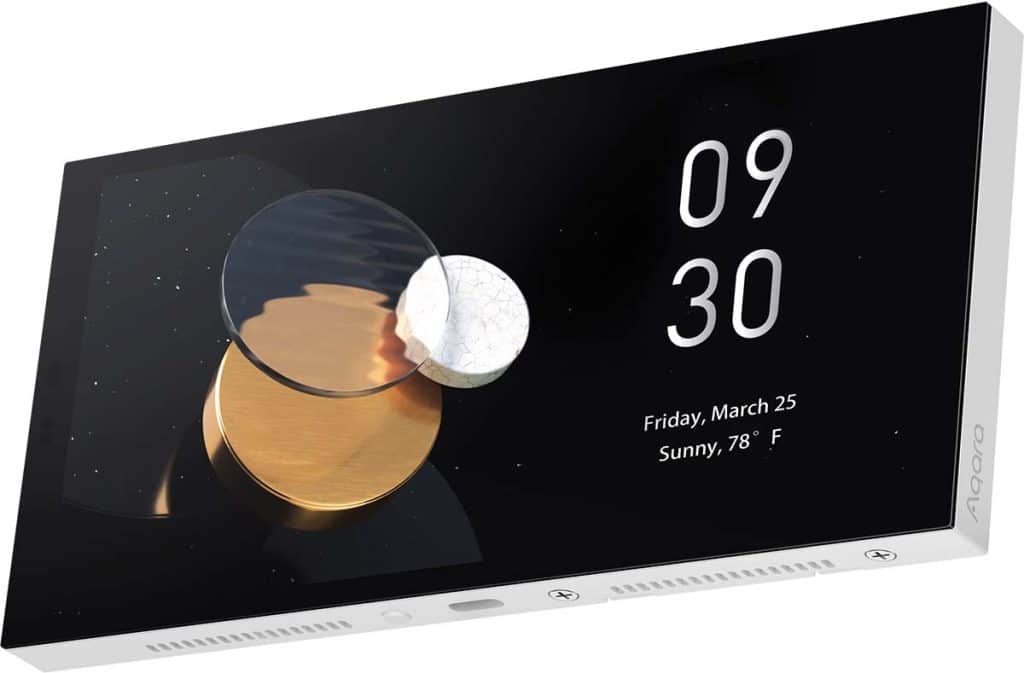

Aqara Panel Hub S1 Plus

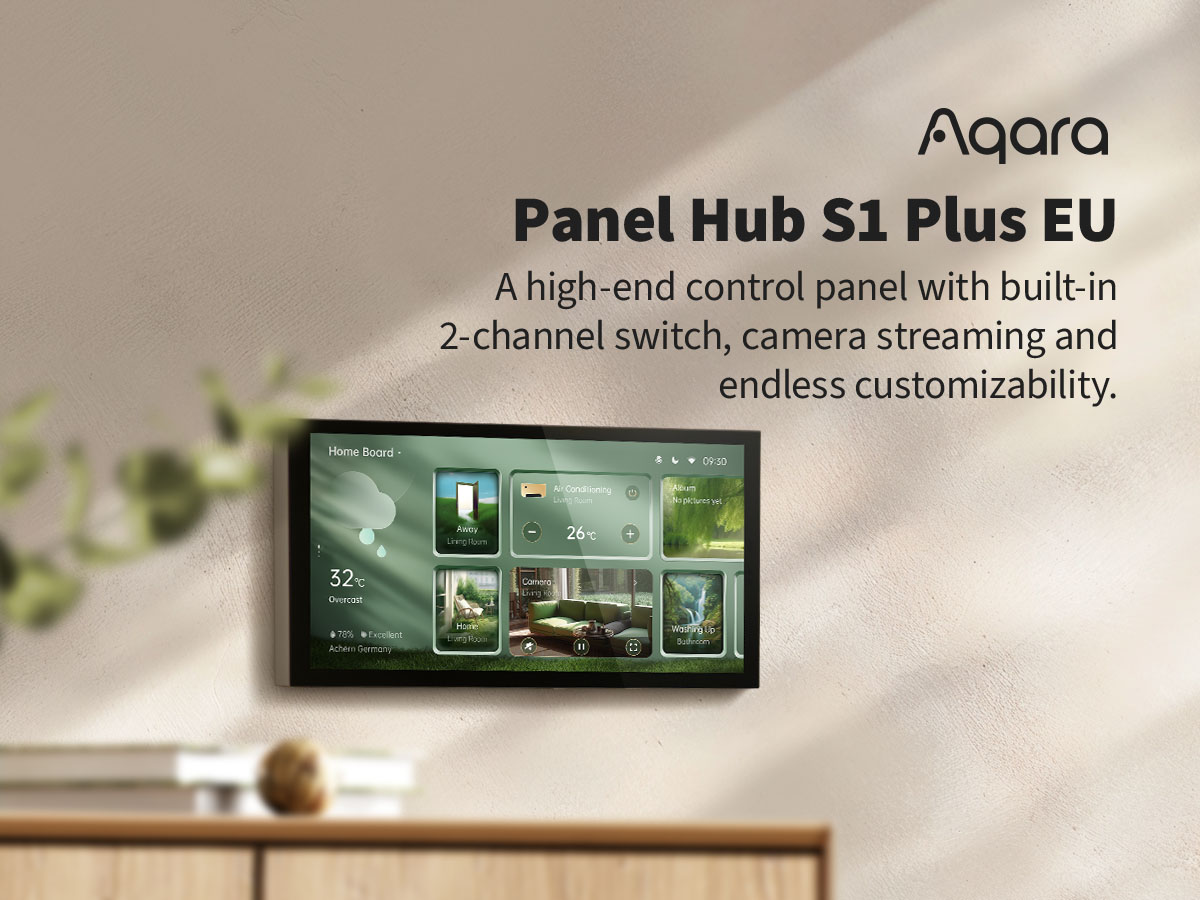

The Panel Hub S1 Plus was released globally for both the SEA and the European markets, featuring a smaller, round rear enclosure suitable for EU installations. This smaller enclosure limits it to having two wired gangs.

The Aqara Panel Hub S1 Plus has a black bezel and white rims.

Other Features

Support Personalized Themes: Users can switch themes on the screen and choose their preferred theme style – including wallpapers, standby images, and button graphics.
Smart Albums: Upload photos through a mobile app, which can be used as standby or wallpaper.

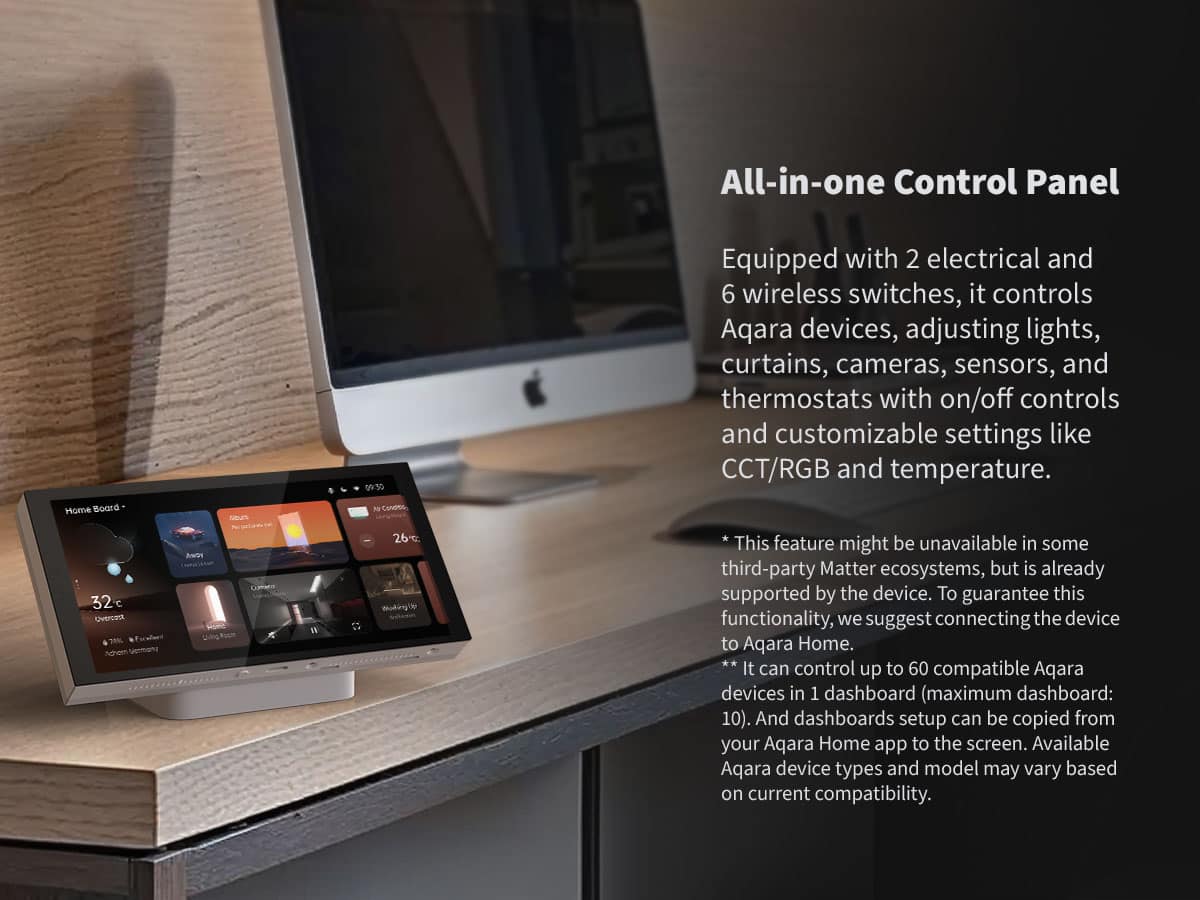

Six Wireless Switches: While the screen offers almost limitless number of ’tiles’ you can configure on the screen, it also incorporates 6 wireless switches that are exposed to Apple HomeKit. This allows for Apple Home products and scenes to be triggered from the screen.
MARS Technology: Mars technology solves the problem of incompatibility between smart switches and smart lights in the industry, and controls smart lighting in a more intuitive way.
HomeKit Support: By associating HomeKit scenes/devices with wireless switches, other third-party HomeKit accessories can be easily controlled on the screen.
Dual Speaker: Excellent sound for two-way communications with Aqara smart cameras.
Supports Various Communication Protocols: Supports dual-band Wi-Fi, Zigbee, and Bluetooth. It can also be used as a Zigbee gateway to connect multiple types of smart devices.

Panel Hub S1 Plus EU

Model
MP-K03D

Dimensions
172 × 86 × 42.2 mm (6.77 × 3.39 × 1.66 in.)

Wireless Protocols
Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4GHz/5GHz, Zigbee IEEE802.15.4, Bluetooth

Resolution
1440 × 720

Input Power
200–240 V, 50/60 Hz, Max 8 A (Resistive Load)

USB-C Input
5V 2A

Rated Load

Single channel: Up to 300W
Dual channel: One channel up to 200W, the other up to 100W

Operating Temperature
-10 °C ~ 40 °C (14 °F ~ 104 °F)

Operating Humidity
0 ~ 95% RH, no condensation

What’s in the Box

Panel Hub S1 Plus × 1
User Manual × 1
Compliance Statement × 1
Screw Kit × 2

—

Aqara MagicPad S1 Plus

Model
MP-K01D

Dimensions
172 × 86 × 43.7 mm (6.77 × 3.39 × 1.72 in.)

Color
Gray

Wireless Protocols
Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4GHz/5GHz, Zigbee

Resolution
1440 × 720

Input Power
100 – 240 V, 50/60 Hz

USB-C Input
5V 2A

Rated Load

Max. 2200W (Incandescent Lamp)
Max. 400W (Capacitive/Inductive load, such as LED)

Operating Temperature
-10 °C ~ 40 °C (14 °F ~ 104 °F)

Operating Humidity
0 ~ 95% RH, no condensation

Third-Party Platform Speaker Support
Google, Alexa (turning on and off relays)

What’s in the Box

MagicPad S1 Plus × 1
M4 × 2
Screw kit × 1
User Manual × 1

Product Warranty

This product is an official Singapore model, covered by a local warranty provided by HomeSmart and Aqara’s Authorised Distributor in Singapore. Full terms and conditions apply – view warranty details.

Warranty Type: Carry-in
Warranty Period: 24 months
